Content of the plans you get
- Licence and serial number for your a/c
- PDF files of CAD-produced drawings, about 257 sheets. If you need paper drawings, you have to print them yourself (A4 and A3 sizes).
- Photography library of the construction of one of the latest examples, 4720 photos (high resolution, 3.8 to 8 megapixels).
- Filled 51% compliance spreadsheet.
- Draft for your pilot's handbook (ODT file)
Samples of the set:
- Drawing A2-6, four pages. Lower backrest frame. PDF
- Drawing A3-1_1. (one of four) shows how aileron/elevator controls are situated on this lower backrest frame. PDF

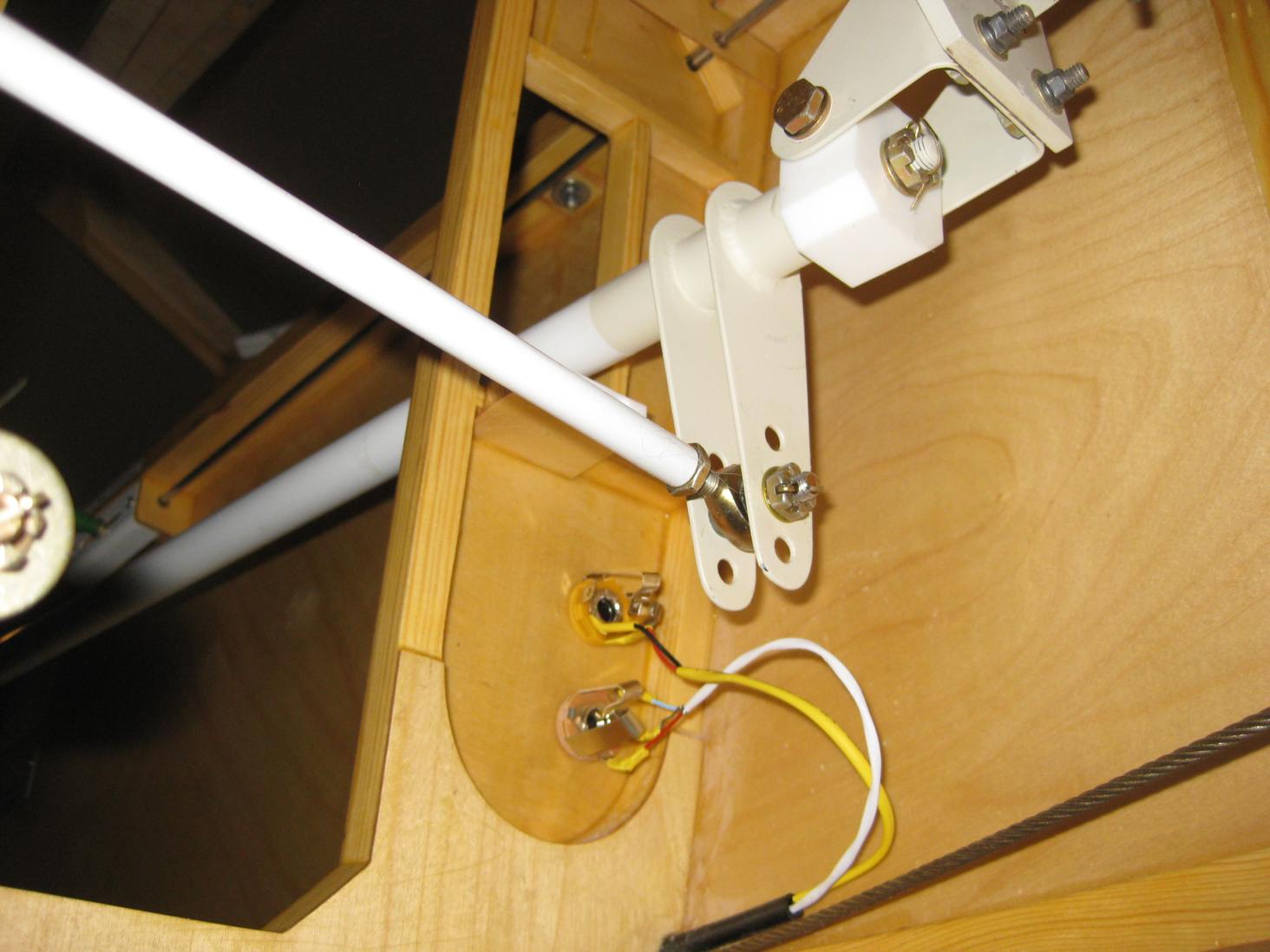

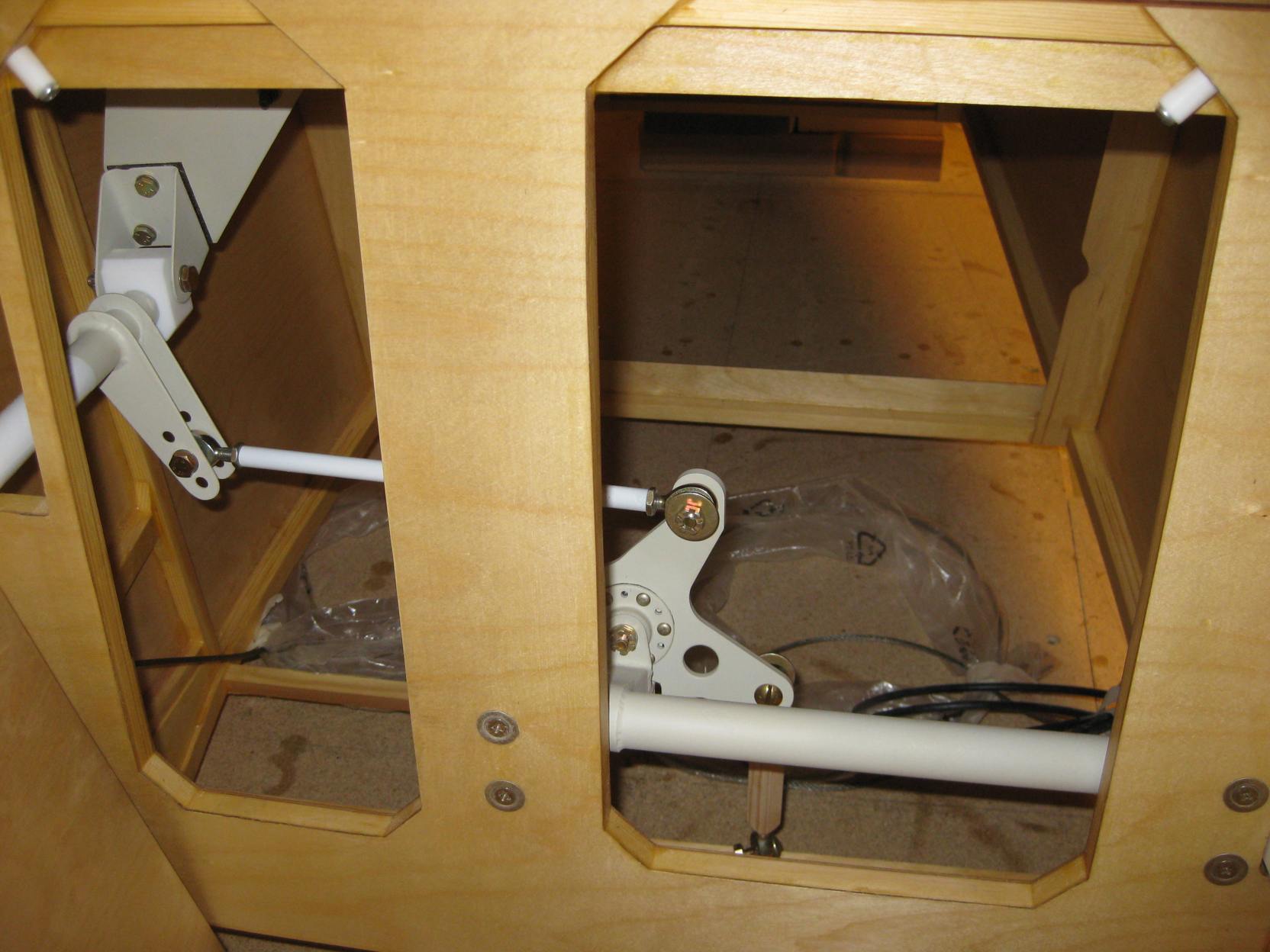

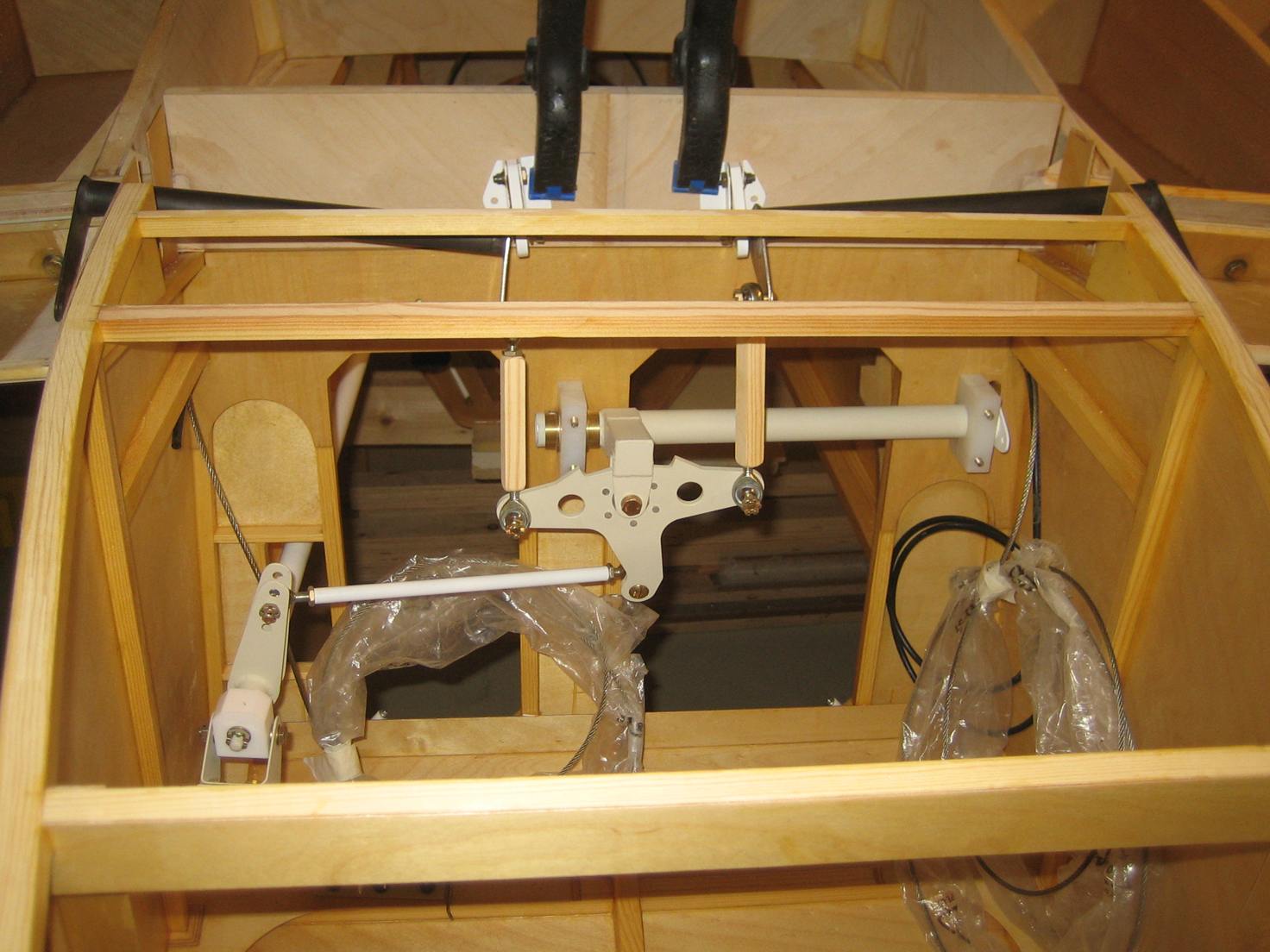

- Three scaled down photographs of this area. Note that aircraft in photos is upside down. Photo 1, Photo 2, Photo 3.
